Valve Spring Kit - High Load Beehive with TI Retainers - M8

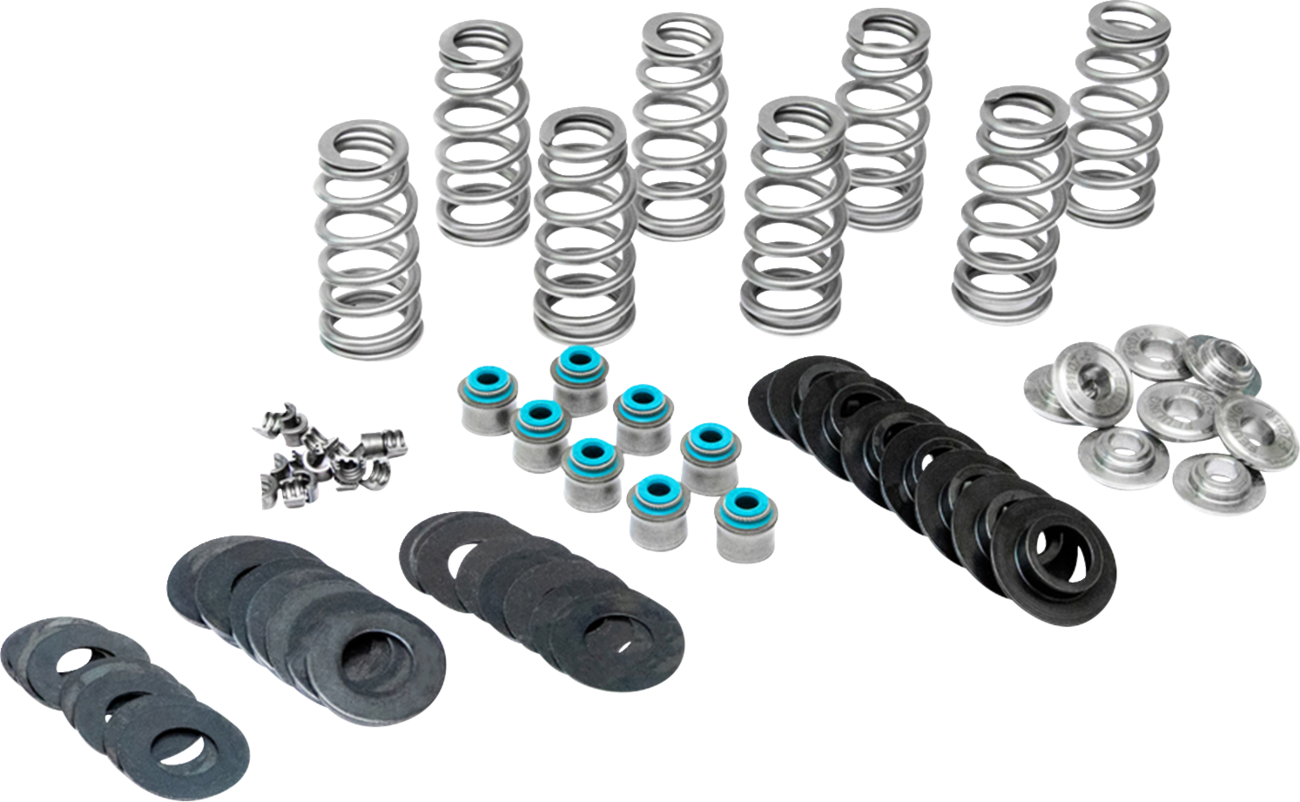

Machined from a premium grade Hi-tensile chrome silicon single conical ovate wire, shot-peened with a specially processed thermal heat treat and super NexTex® finish to give these valve springs the needed fatigue life to exceed the high demands of V-Twin engines from stock to performance FEULING® BEEHIVE® valve springs use a smaller lighter weight retainer which drastically reduces the valve weight creating a quicker revving and smoother motion than comparable dual or single valve springs Valve springs are a direct bolt-in replacement, no spring seat or rocker cover machining required up to 0.565” lift Springs will accommodate over 0.600" cam lift, but will require spring seat pocket machining on the cylinder heads to set correct spring open height Smaller lighter weight retainers which drastically reduce the valve weight creating a quicker revving and smoother motion than comparable dual or single valve springs Eliminate valve spring separation, maximize stability, reduce valve-train noise & harmonics Kit includes: matched set of Feuling® High Load Beehive® valve springs, Ti retainers, machined spring seats, seat shims, valve locks and a set of premium Viton® valve seals equipped with a spring loaded valve stem wiper system 151 lb @ 1.475" (0.485" Lift) 144 lb @ 1.498" (0.508" Lift) 143 lb @ 1.501" (0.511" Lift) 140 lb @ 1.511" (0.521" Lift) 124 lb @ 1.562" (0.578" Lift) 120 lb @ 1.582" (0.592" Lift) 304 lb @ 0.990" open height Coil Bind @ 0.945" Recommended for +0.540” lift camshafts Feuling® BeeHive® valve springs must be installed at the correct open height, matching max lift to the open height spec of the valve springs Made in the USA
