100" Power Package - 585CE - Chain Drive - Silver - Twin Cam 88
Performance Kits
$3,396.95
Or four interest-free payments of $849.24.
Part Number: 0904-0025
In stock
Select your bike to verify fitment
Fitment data is provided as a guide based on manufacturer specifications. We recommend confirming exact fitment with your VIN or model code before purchase. 2AC is not responsible for fitment issues arising from incorrect vehicle selection.
Qty
Veteran OwnedSupporting those who served
Free ShippingOn orders over $200
30 Day ReturnsNo-hassle guarantee
Top Quality PartsTested. Trusted. Built to last.
Ride Proud. Built Free.Every part we sell supports freedom, the 2A, and American riders.
Product Description

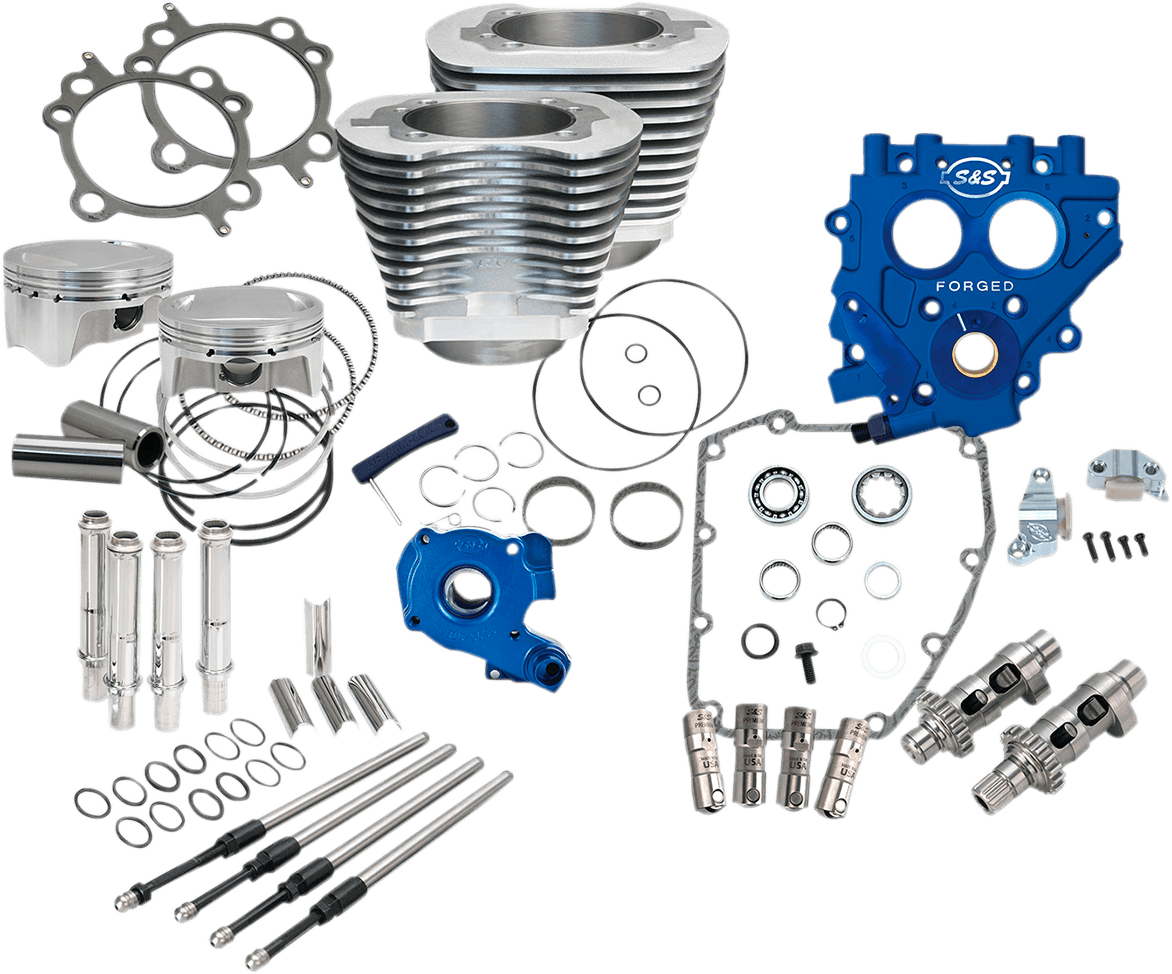

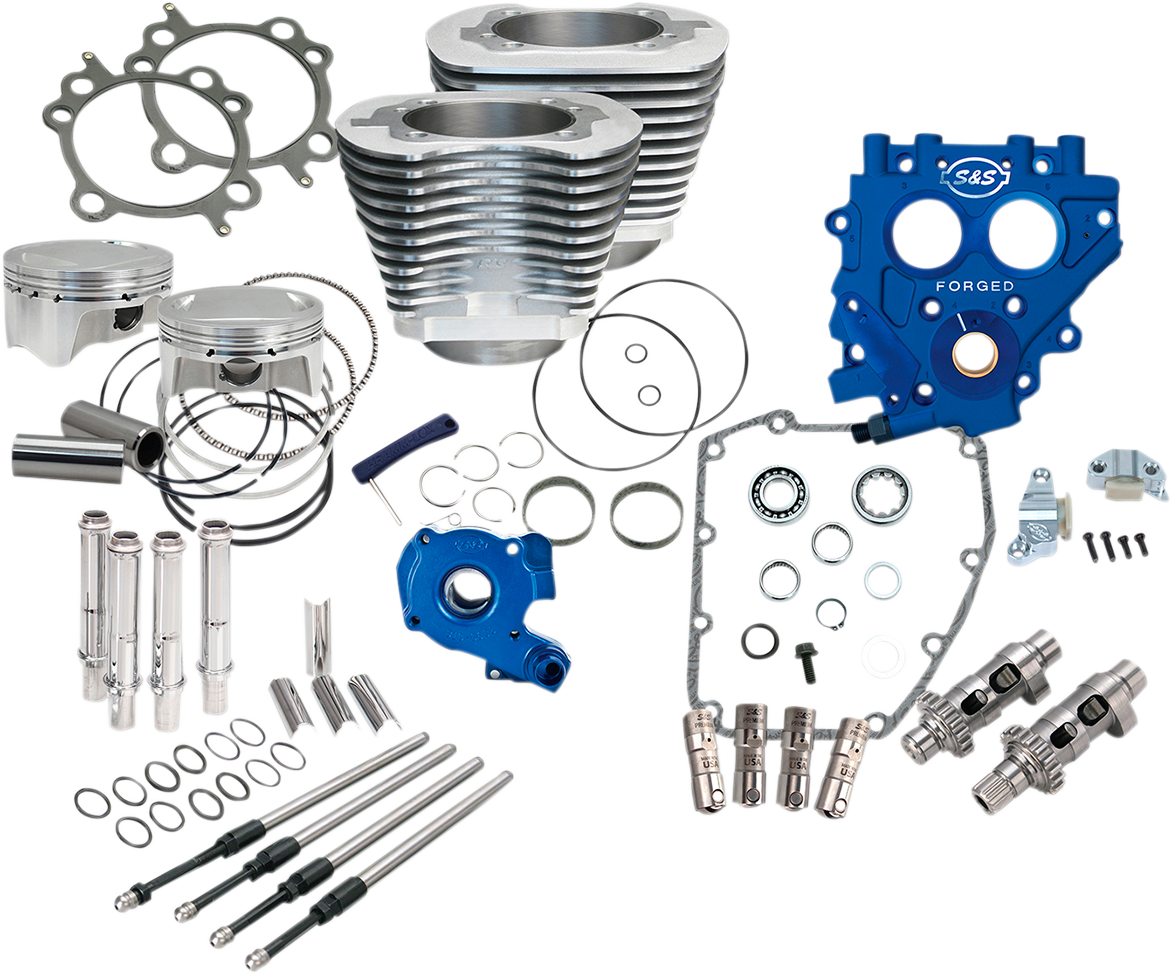

Made in the USA S&S 4.000" Big-Bore Cylinders, Piston Kits, S&S 585 Easy Start® Cams, S&S Quickee Pushrods, TC3 Cam Support Plate, TC3 Oil Pump, and Precision Hydraulic Tappets are included in this kit 2x S&S 4.000" bore cylinders Low friction ductile cast iron liner Bolt in No maching, balancing, or splitting the crankcase Can be used with stock heads Increase displacement from 88 ci to 100 ci 2x 4.000" pistons for front and rear 2x 0.927" piston pins 4x Piston pin clips with installation tool 2x Ring packs which includes the top, second, oil rail and expander rings Provides 10.5:1 compression ratio Intake: Open 20° / Close 45° / Duration at 0.053" 245° / Valve Lift 0.585" Exhaust: Open 60° / Close 20° / Duration at 0.053" 260° / Valve Lift 0.585" Adjustable with chrome tubes Machined from aluminum forgings Ensures consistent oil pressure and engine longevity Close tolerances for low leak down rates Reduced valve train noise from start to shut down
